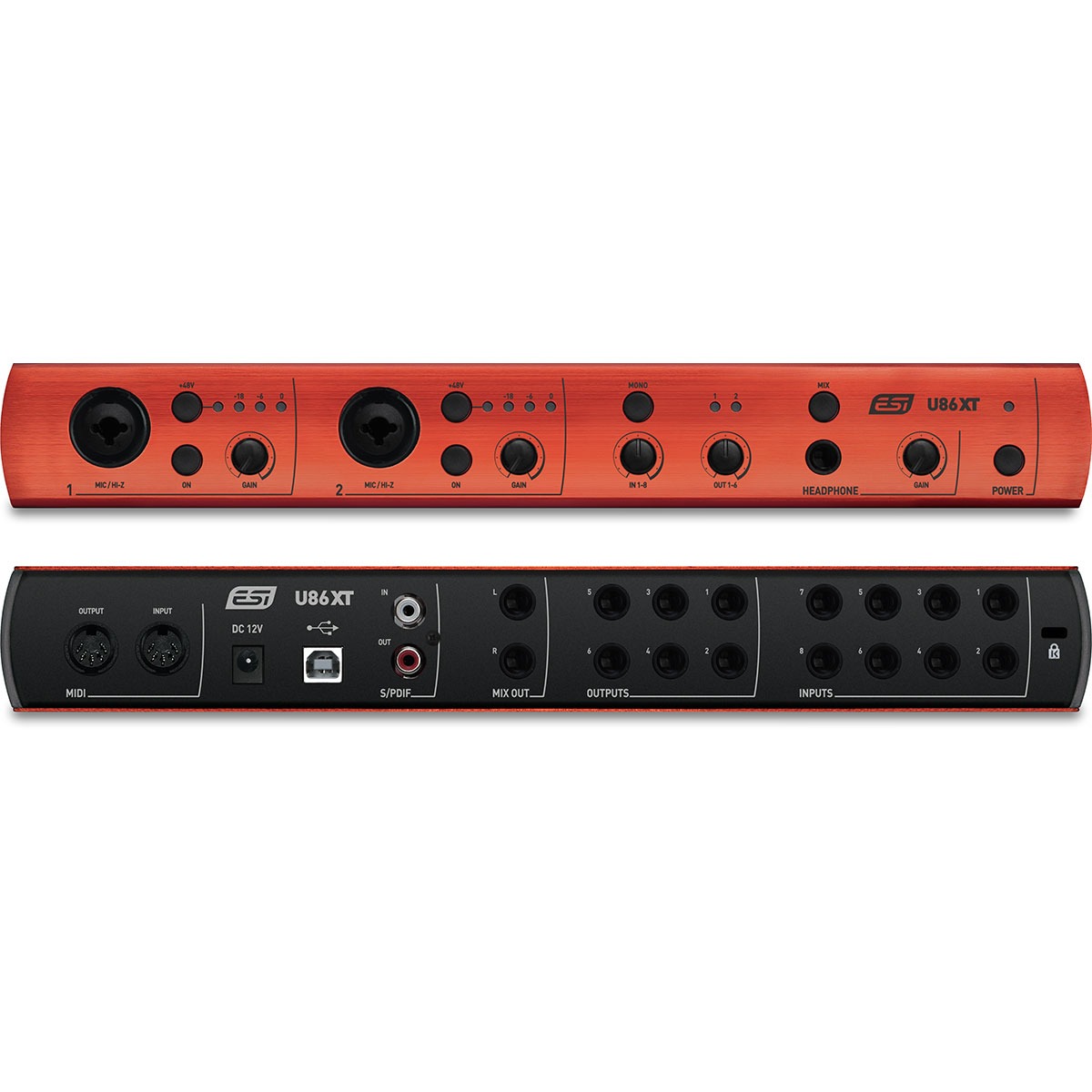

ESI U86 XT
- 8 input / 6 output 24-bit / 96kHz USB 2.0 Hi-Speed 24-bit Audio Interface
- 2 professional microphone preamps with +48V phantom power support
- 2 Hi-Z high performance instrument inputs with 1/4″ connector
- digital S/PDIF input with RCA connector
- digital S/PDIF output with RCA connector
- supports up to 24-bit / 96kHz
- 8 line inputs with balanced 1/4″ TRS connectors
- 6 line outputs with balanced 1/4″ TRS connectors
- professional headphone output with 1/4″ stereo phone connector
- separate stereo mix output with integrated monitoring mixer controlled on front panel
- ADC with 107dB(a) dynamic range
- DAC with 112dB(a) dynamic range
- 16 channel MIDI I/O with one MIDI input and one MIDI output
- powered by included DC power supply
- supports Windows Vista, Windows 7, Windows 8.1, Windows 10 and Windows 11 with ASIO 2.0, MME, WDM and DirectSound incl. DirectWIRE support
- supports Mac OS X (10.7 and above) via CoreAudio USB audio driver
- includes Bitwig Studio 8-Track digital audio workstation software
- includes license of inTone 2 ESI Edition from Audified
- dimensions roughly 31.0cm x 14.5cm x 4.5cm
